The DAB WATERPACK 2 S4-2/7 Borehole Pump Set with 50m Cable (0.37kW, 0.5hp, 220V) is a submersible electric pump designed for 4-inch and bigger boreholes and wells.
- Construction that is cost-effective guarantees minimal costs, great efficiency, improved performance, and dependability.
- Abrasion-resistant design and floating impellers provide maximum abrasion resistance.
- Precision-cast stainless steel delivery port and suction support provide corrosion resistance, longevity, and a strong connection to the motor.
- The hexagonal pump shaft ensures efficient impeller drive.
- Non-return valve installed at discharge to avoid backflow and reduce water hammer, thus protecting ABS impellers and diffusers.
- These pumps provide a wide variety of flows and heads. Among the many application options are lifting, distribution, and pressurization, filling pressure vessels and tanks, fire-fighting systems, and irrigation system cleaning. Water is used in civic, industrial, and agricultural systems.
DAB has been a key participant in technology for the transportation and management of our most valuable resource, water, for over 40 years.
Specifications of the product:
- P2 nominal: 0.37kW, 0.5hp; operational range: up to 50l/min; head up to 47m
8 cm/sec cooling flow
- Installation: vertical position, 4-inch wells or bigger, tanks and cisterns.
- 880 x 450 x 120mm [length x width x height]

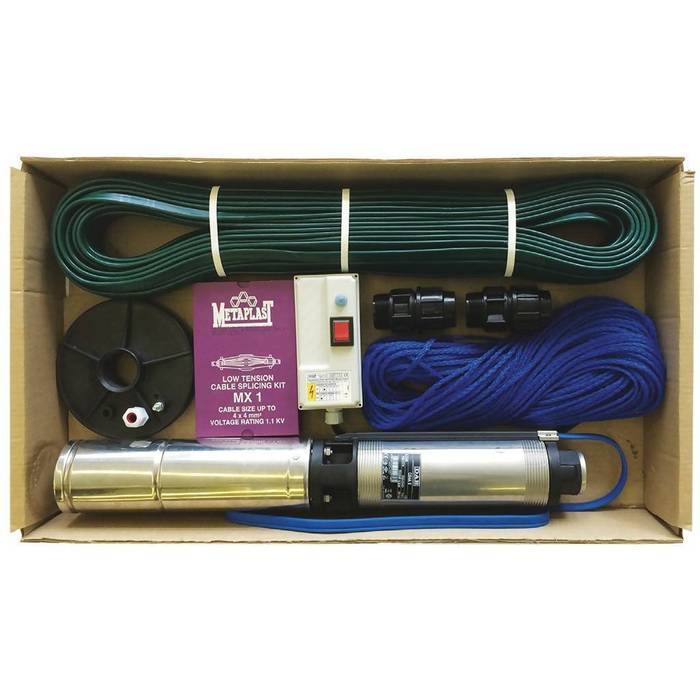

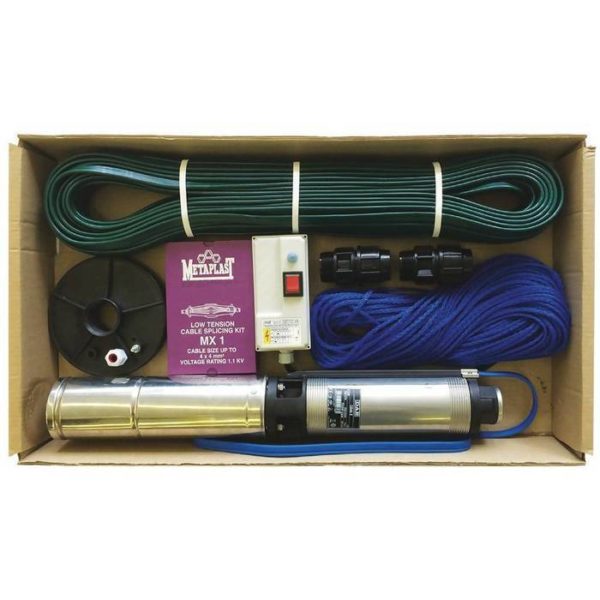

What’s included in the box:
- MX1 epoxy cable junction kit, 1.5mm2 4 core submersible cable, SABS certified
- 40mm base-plate with integrated cable gland for the control box
- Adaptors for men
- Nylon safety rope, 6 mm
- Tesla 4OL submersible motor with a wet end
